What’s SPDIP Package?



Shrink Plastic Dual In-line Package (SPDIP) is a rectangular plastic package with leads extending from both of its long sides, thus forming two sets of in-line pins. It is actually just a denser or “shrink” version of the PDIP with a 0.07 in (1.778 mm) lead pitch. As such, it provides a smaller package size compared to a standard PDIP for the same lead count.

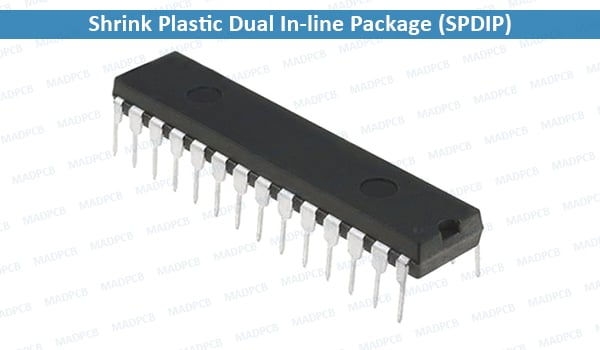

Shrink Plastic Dual In-line Package (SPDIP)

Shrink Plastic Dual In-line Package (SPDIP)



This package comes in several body widths, i.e., 300mil, 400mil, 600mil and 750mil. Most shrink plastic Dual In-line IC‘s have lead counts that range from 28 to 64. This is a through-hole package, which means that its leads protrude to the other side of the circuit board once mounted. The standard lead pitch is 70mil.

Properties of some Examples
Lead Count Width Length Thickness Pitch
8 300mil 450mil 155mil 100mil
22 300mil 1030mil 130mil 100mil
30 400mil 1095mil 150mil 70mil
42 600mil 1450mil 150mil 70mil
52 600mil 1810mil 150mil 70mil
64 750mil 2273mil 150mil 70mil
