Test Jig for PCBA Testing

Electronic hardware development is difficult without proper test jigs. MADPCB enables you to speed up development by providing PCBA (PCB assembly) test fixture designs for development or production in one day. Test jig always have two main applications, one is firmware uploading, another is functional testing.

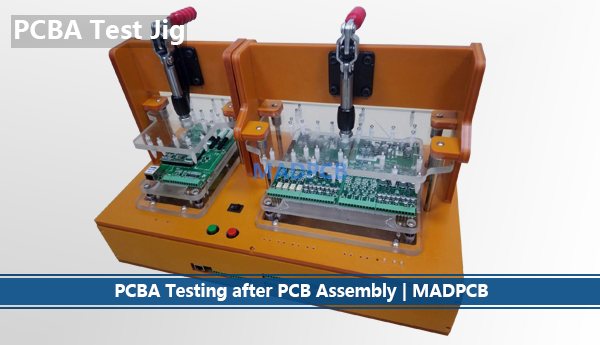

PCBA Testing Jig

PCBA Testing Jig



With our turnkey service, test jig removes roadblocks and headaches that firmware developers and hardware designers encounter daily. There is no longer a need to solder power cables or programming headers to PCBA’s and no more debugging of loose connections and broken solder joints. PCBA functional tests can be developed earlier and in less time by reducing the time needed to design a production capable fixture.



Test Jig File Requirement



Test Jig fabrication requires ECAD files to automatically identify test points, mounting holes, and other test features. We support the following file formats:

  • Altium Test Point Reports (.csv)
  • Eagle (.brd)
  • Gerbers (.zip)
  • KiCAD (.kicad_pcb)



Test Jig Design



Choose test probe card and receptable types from a list of parts that are compatible with the fixture. Add, modify, and remove probes and guide pins as needed. DUT (device under test) location and panelization settings can also be configured, allowing for the fixture to test an entire panel at a time. Visually review a generated jig before finalizing the design.



Test Jig Fabrication



Download the Design File Package which includes everything needed to build the fixture. Use the files to fabrication the plates using Acrylic, CNC milling or laser cutting.



Test Jig Assembly



Attach all probes and guild pins, integrate your test instrumentation, and run your test



Design for Test (DFT)



Building a test fixture can be a difficult and costly process, especially if the PCB wasn’t designed with test in mind. The following tips can help make testing your PCB assemblies much easier when using a bed-of-nails style test fixture (/jig).



Single-sided Probing



All test points should be placed on a single side of the PCB, preferably the side with fewer components. This will greatly reduce the cost and complexity of the test fixture required to test the PCB board in rigid and flex.



Test Point Grid Spacing



A common term in the PCBA testing world is Test Point Grid Spacing. This means the minimum space between test points on the PCB and is defined using either mil (a thousandth of an inch) or mm. Test probes come in a variety of grid spacings, with the most common being:

  • P100 (100mil or 2.54mm spacing)
  • P75 (75mil or 1.91mm spacing)
  • P50 (50mil or 1.27mm spacing)



You should design printed circuit board (PCB) to use the largest test point spacing possible. The larger the test probe is, the more durable it is, and larger probes are also less expensive. At MADPCB, we prefer 100mil (2.54mm) and 75mil (1.91mm) spacings.



Test Probe and Test Point Types



While different types of test points and probes can be used, we recommend using regular pads with a minimum diameter of 0.8mm (31.5mil). These can easily be accessed by most probe types. Increasing the pad diameter to 1mm will help improve the reliability of the tester. Different test point types and the test probes that should be used are described below.



Leads



A lead test point is created by the lead from a through-hole component that is soldered to the PCB board. Serrated probe tips typically have the longest life, but cupped probe tips can also be used.



Terminals and Posts



A terminal or post is created by a component with a square terminal or post that is soldered to the PCB. These types of test points are best contacted by slotted (self-cleaning) cups when used facing upwards. Serrated or flat tips will also work. However, the cup tips will self-align to the terminals or post.



Pogo Contact Pads



Pad test points are simple pads on the PCB that are not covered with solder (no solder paste). Using the largest diameter pad that is possible in your design will help increase the reliability of the probes contacting the pads, we recommend using a minimum pad diameter of 0.8mm. Crown tips are great for contacting clean flat solder pads but require frequent maintenance. Spear, or Needle tips are great for reliably testing flux-coated solder pads.



In a summary, you can use the following checklist to help ensure that your PCB designs are testable:



  • At least 1 test point is available on each net that you would like to test.
  • Use 1mm or greater diameter pads that are not covered with solder paste for each test point.
  • Place test points at distance of >1.91mm from each other.
  • Place all test points on either the top or bottom of the PCB board. Preferably, place them on the least populated side of the board.
