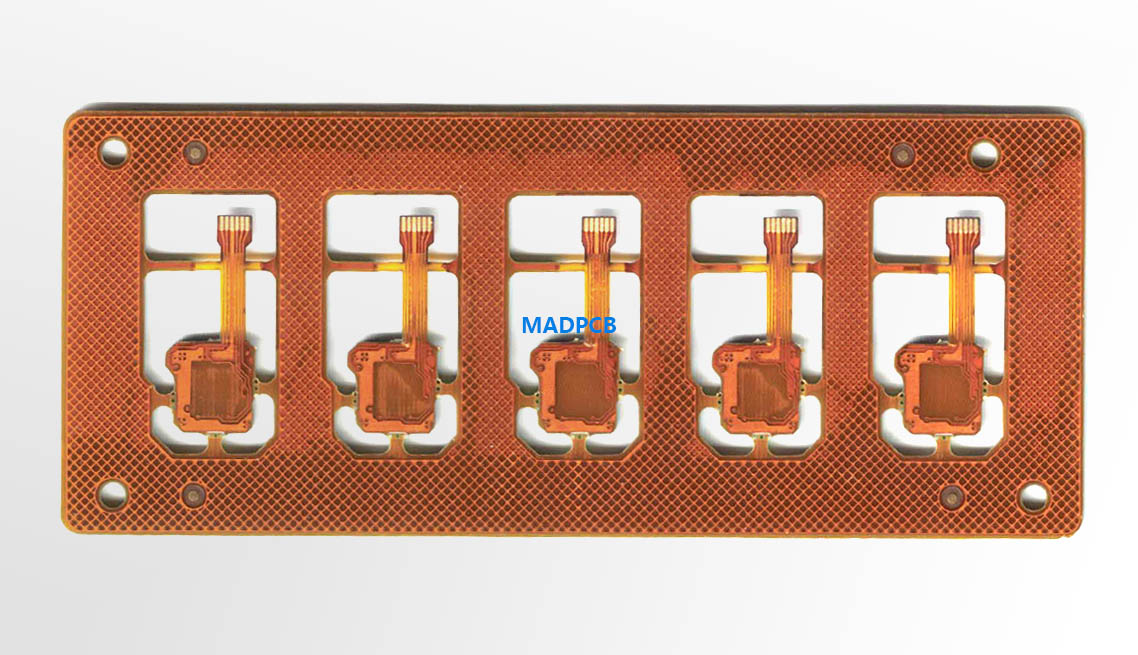

4-Layer 2mm Tiny Rigid-Flex Board

Layer Count: 4 layers
Structure: 2 Rigid + 2 Flex

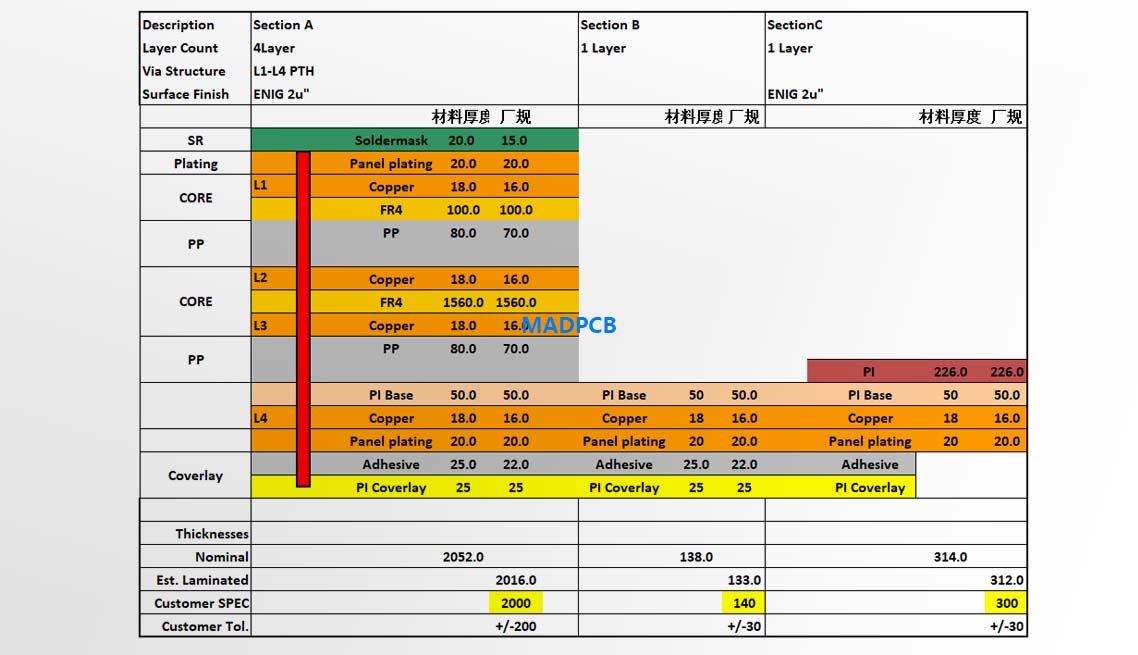

Material: (see stack-up) 94V-0, RoHS
FPC Thickness: 0.14mm+/-0.03mm
Rigid-Flex PCB Thickness: 2.0mm +/-0.2mm
Fingers (FPC + PI Stiffener) Thickness: 0.3mm+/-0.03mm
Solder Mask: Green x1
Coverlay: yellow x1
Silkscreen: white x1
Unit Size: 21.4 x 8.7mm
Panel Size: 100.5 x 54.4mm/5up
Finished Copper Weight: 37/16/16/36μm
Surface Finish: ENIG (Au: 2-3μ”, Ni: 120-240μ”)
Min NC Drilling Dia.: 0.15mm

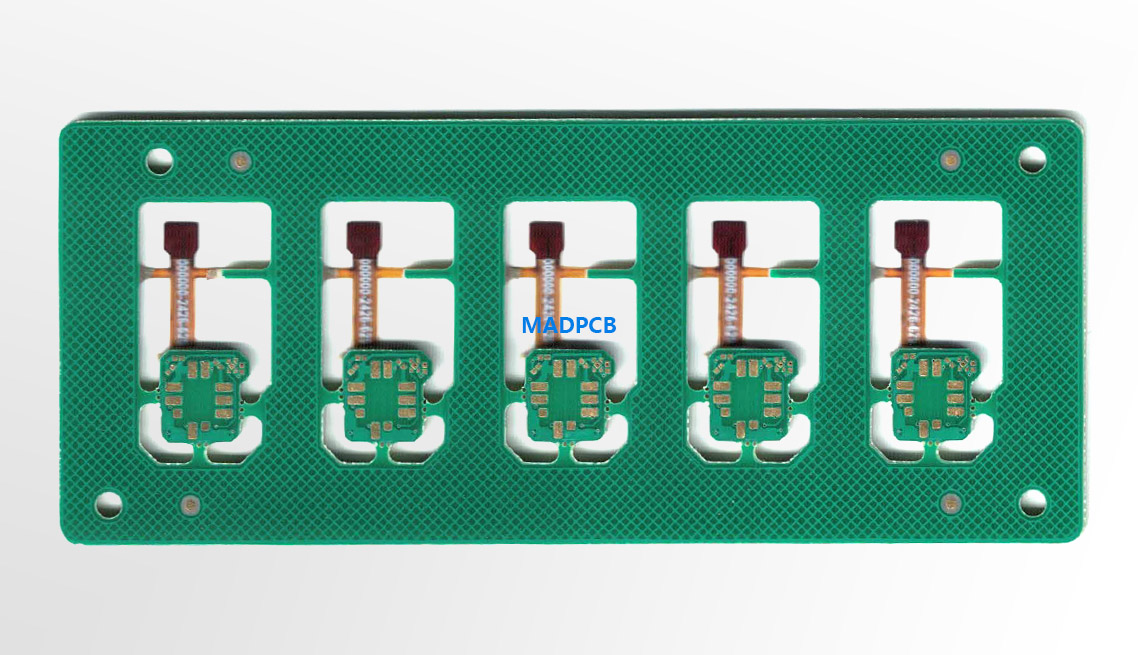

4-Layer Tiny Rigid-Flex Board Bottom Side
