4-Layer Thru-Hole Rigid-Flex PCB

  1. Home
  2. 4-Layer Thru-Hole Rigid-Flex PCB

4-Layer Thru-Hole Rigid-Flex PCB

  • Layer Count: 4 layers
  • Structure: 1 Rigid + 2 Flex + 1Rigid
  • Material: (see stack-up) 94V-0, RoHS
  • FPC Thickness: 0.18mm+/-0.03mm
  • Rigid-Flex PCB Thickness: 1.6mm +/-0.16mm
  • Solder Mask: Green x2
  • Coverlay: yellow x2
  • Silkscreen: white x2
  • Unit Size: 94*74mm
  • Panel Size: 166 x 110mm/2up
  • Finished Copper Weight: 36/16/16/36μm
  • Surface Finish: ENIG (Au: 2-3μ”, Ni: 120-240μ”)
  • Min NC Drilling Dia.: 0.3mm
4-Layer Thru-Hole Rigid-Flex PCB Top Side
4-Layer Thru-Hole Rigid-Flex PCB Top Side

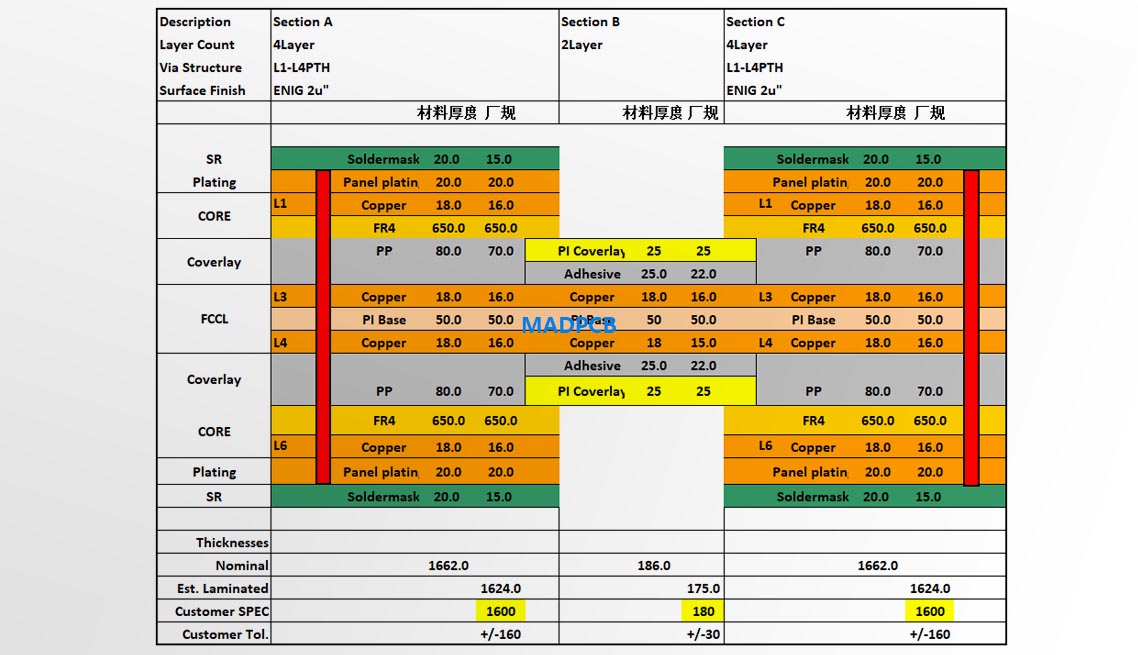

4-Layer Thru-Hole Rigid-Flex PCB Top Side 4-Layer Thru-Hole Rigid-Flex PCB Bottom Side 4-Layer Thru-Hole Rigid-Flex PCB Gerber 4-Layer Thru-Hole Rigid-Flex PCB Stack-up
