Beacon and Modem PCB Assembly for Indoor Positioning and Navigation System

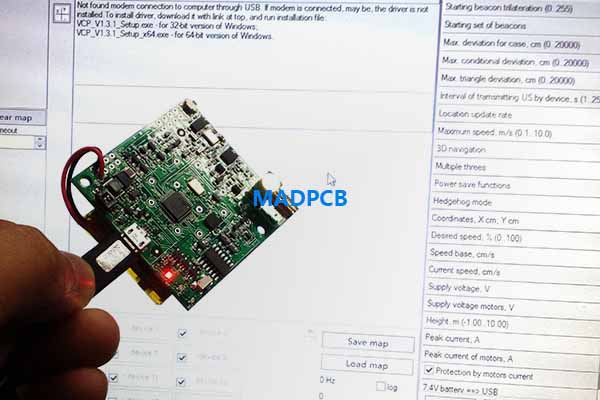

One modem PCBA can monitor and control one or several beacon PCBAs, the display can read the distance and motion track with ±2cm precision through ultrasound signals.

Layer Count: 4 layers
Material: FR4 Tg150
Finished Board Thickness: 1.6mm +/-10%
Solder Mask: Green x2
Silkscreen: White x2
Unit Size: 30*30mm
Panel Size: N/A
Finished Inner Copper Weight: 35μm
Finished Outer Copper Weight: 35μm
Surface Finish: HASL lead free
Assembly Process: Lead-free Assembly
IC Programming: Yes

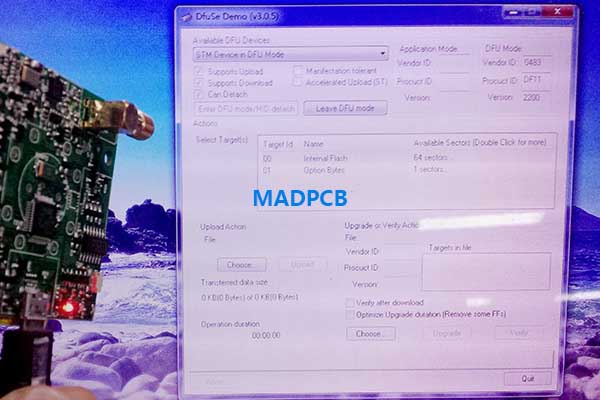

Firmware Uploading: Yes (through Defuse Demo)

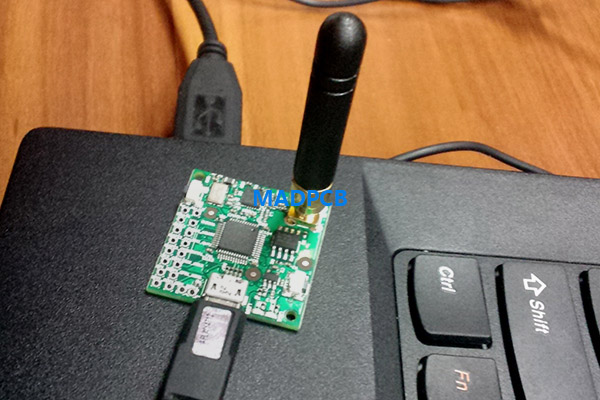

Indoor Positioning and Navigation Testing: Yes
Distance Measurement: Yes
Drop Shipping Service: Yes
