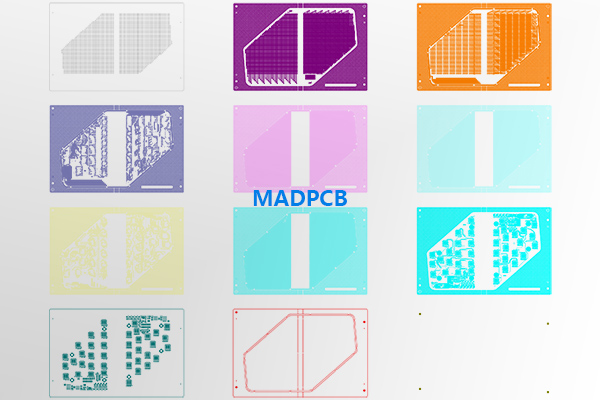

8 Layer 2+4+2 HDI Rigid Flex PCB for LED Display
8 Layer 2+4+2 HDI Rigid Flex PCB for LED Display
8 Layer 2+4+2 HDI Rigid Flex PCB for LED Display
- Layer Count: 8 Layer (2+4+2, 2 level HDI)
- Rigid-Flex Structure: 2R+6F
- Material: Panasonic FCCL, ITEQ FR-4 Tg150, 94V-0, RoHS
- Finished FPC Thickness: 0.18mm
- Finished Rigid-Flex PCB Thickness: 1.58mm
- Solder Mask: Matte Black x2
- Coverlay: yellow
- Silkscreen: no
- Unit Size: N/A
- Panel Size: 208x136mm/1up

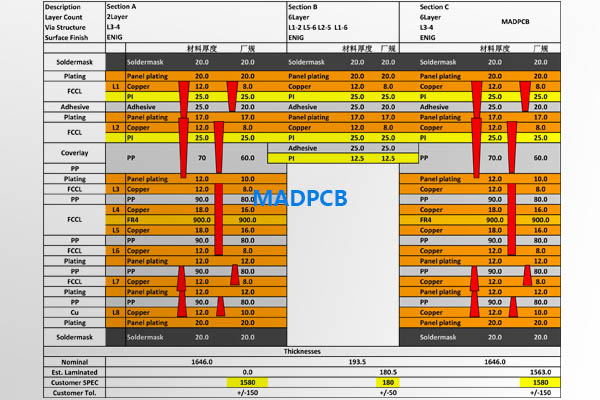

- Finished Copper Weight: as per stack-up
- Surface Finish: ENIG
- Laser Drilling: 0.1mm (4mil)
- Min NC Drilling: 0.2mm (8mil)
- Controlled Impedance: no
- Blind and Buried Vias: yes
- Resin Filled + Copper Capped: yes
