PCB Assembly Capabilities
MADPCB is more than a prototype printed circuit board (PCB) assembly manufacturer, we offer flexible assembly services, including Turnkey Consigned (/Kitted), Partial Turnkey (/Combo) that take you from prototyping, low to high-volume PCB assembly with through-hole technology (THT), single-sided to double-sided surface mounting technology (SMT) assembly.

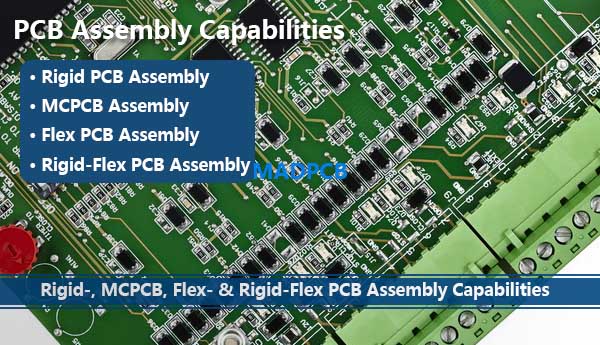

PCB Assembly Capabilities
Here we offer our full in-house PCB Assembly Capabilities to fit all your assembly needs of soldering parts on rigid, metal core (IMS), flex, and rigid-flex PCBs. Learn all about PCB Assembly Capabilities, Mad PCB is a great source for you to learn more about PCB Assembly Capabilities.
| Assembly Capabilities | Rigid PCB Assembly | MCPCB Assembly | Flex PCB (FPC) Assembly | Rigid-Flex PCB Assembly | |
| Services | Full Turnkey | Y | Y | Y | Y |
| Consigned (/Kitted) | Y | Y | Y | Y | |
| Partial Turnkey (/Combo) | Y | Y | Y | Y | |
| Wiring and Harness | Y | Y | Y | Y | |
| Box Build | Y | Y | Y | Y | |
| SMT Size | Min PCB Short Side Size | 45mm (1.77”) | 45mm (1.77”) | 45mm (1.772”) with carrier | 45mm (1.772”) |
| Max PCB Long Side Size | 610mm (24.02”) | 610mm (24.02”) | 610mm (24.02”) with carrier | 610mm (24.02”) | |
| Parts | Min SMD Size | 0201 | 0402 | 0201 | 0201 |
| Min BGA Pitch | 0.3mm (11.81mil) | N | 0.3mm (11.81mil) | 0.3mm (11.81mil) | |
| Leadless Part Packages | BGA, µBGA, LGA, QFN, CSP | BGA, µBGA, LGA, QFN, CSP | BGA, µBGA, CABGA, CTBGA, CVBGA, LGA, VFBGA, CSP | BGA, µBGA, CABGA, CTBGA, CVBGA, LGA, VFBGA, CSP | |
| Packaging | Reel, Cut-Tap, Tray &Tube, Loose Parts and Bulk |
Reel, Cut-Tap, Tray &Tube, Loose Parts and Bulk |
Reel, Cut-Tap, Tray & Tube, Loose Parts and Bulk |
Reel, Cut-Tap, Tray &Tube, Loose Parts and Bulk |
|
| Soldering | Soldering Side | Single- & Double-Sided | Single- & Double-Sided | Single- & Double-Sided | Single- & Double-Sided |
| Assembly Process | Lead-free (RoHS) & Leaded | Lead-free (RoHS) & Leaded | Lead-free (RoHS) & Leaded | Lead-free (RoHS) & Leaded | |
| Parts Type | SMT & Through-Hole | SMT & Through-Hole | SMT & Through-Hole | SMT & Through-Hole | |
| Reliability | IC Programming | Y | N | Y | Y |
| Firmware (/Software) Uploading | Y | N | Y | Y | |
| Functional Testing (FCT) | Y | N | Y | Y | |
| Boundary Scan | Y | N | Y | Y | |
| Tooling | SMD Stencil | Y | Y | Y | Y |
| SMT Carrier | Y | Y | Y | Y | |
| Testing Jig | Y | Y | Y | Y | |
| De-Paneling Carrier | Y | Y | Y | Y | |
| Quality | Reflow Profiling | Y | Y | Y | Y |
| Naked Eye Visual Inspection | Y | Y | Y | Y | |
| First Article Inspection (FAI) | Y | Y | Y | Y | |
| SPI | Y | Y | Y | Y | |
| AOI | Y | Y | Y | Y | |
| X-ray | Y | Y | Y | Y | |
| Repair & Rework |
Part Removal | Y | Y | Y | Y |
| BGA Reballing | Y | Y | Y | Y | |
| Part Re-soldering | Y | Y | Y | Y | |
| Data | SMT Files | Gerber BOM (.xls, .csv, .xlsx) Centroid (Pick-and-Place/XY) |
Gerber BOM (.xls, .csv, .xlsx) Centroid (Pick-and-Place/XY) |
Gerber BOM (.xls, .csv, .xlsx) Centroid (Pick-and-Place/XY) |
Gerber BOM (.xls, .csv, .xlsx) Centroid (Pick-and-Place/XY) |
| FCT File | Fixture Wiring Drawing, Testing Procedure |
Fixture Wiring Drawing, Testing Procedure |
Fixture Wiring Drawing, Testing Procedure |
Fixture Wiring Drawing, Testing Procedure |
|
| Programming File | Program, Firmware | Program, Firmware | Program, Firmware | Program, Firmware | |
Nearly all electronics on earth require a circuit board to be able to operate properly. Because of how intricate circuit board assembly is, with its extensive soldering and/or assembly of electronic components, many companies opt for a professional PCB board assembly house, like MADPCB.
If you’re in need of PCB assembly, then you only want to deal with circuit board assembly services with a proven track record of quick turnarounds, high-quality products, and quick adoption of new technologies. Learn what capabilities of modern-day circuit board assemblers are capable of, and therefore what you should look for when narrowing down your own electronic circuit board assembly options.
MADPCB is a full service manufacturer of PCB fabrication and assembly with advanced printed circuit board assembly capabilities. At MADPCB, you can contact professionals directly, not only sales, but also PCB designers, CAM engineers, BOM engineers or SMT engineers, we are the reliable assembler that you can count on to submit your PCB assembly project for quote, PCB manufacturing, components sourcing, assembly, IC programming and functional testing at reasonable prices!
