PCB Assembly
MADPCB is an electronics contract manufacturer (ECM) located in China. We are founded to provide businesses fast and reliable electronic PCB assembly services at an affordable price. We specialize in prototype, low and high volume runs with fast turnarounds. All printed circuit board assembly are manufactured at MADPCB, and we maintain full control of the entire process so you don’t have to manage multiple vendors. When you choose MADPCB, you can be sure that your circuit boards flow directly into our in-house assembly department to begin assembly without delay.

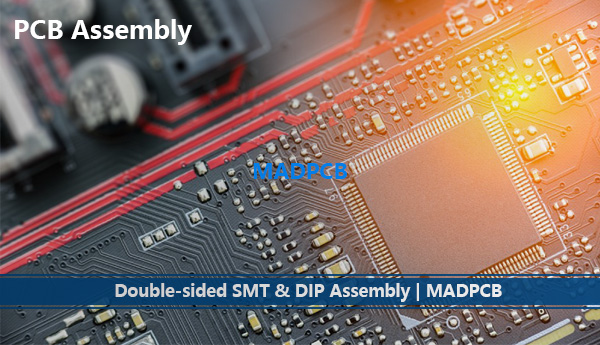

PCB Assembly
Printed Circuit Board Assembly Supported Capabilities
| Feature | Supported Capabilities |
| Types of Assembly | Thru-Hole Assembly
SMT (Surface Mounting Technology) SMT & Thru-Hole Mixed Single- and Double-sided Assembly Embedded Component Assembly (no longer use since 2016) |
| PCBA MOQ | 5pcs |
| Components | Passive parts, smallest size 0201
Fine pitch to 0.2mm (8mil) BGA, μBGA, QFN, POP and Leadless chip carriers Connectors and terminals |
| Component Package | Tape and Reel |
| PCB Size | Recommended Min Panel: 48mm x 48mm (1.89’’ x 1.89’’)
Recommended Max Panel: 250mm x 610mm (9.84’’ x 24’’) |
| PCB Type | Rigid PCB |
| Assembly Process | Lead-Free (RoHS) |
| Required Files | Gerber RS-274X
BOM (Bill of Materials) (.xls, .csv, .xlsx) Centroid (Pick-and-Place, XY, or coordinate file) (.txt, .csv) Assembly Drawing (.pdf) if necessary Assembly Notes (.pdf, .doc, .docx, .txt) if necessary |
| Testing | X-ray Inspection
AOI (Automatic Optical Inspection) |
| Reflow Oven Profile | Standard
Customized upon components type, PCB thickness, … |
| Tooling | SMD Stencil |
| Turnaround Time | 2-3 days for board assembly with parts provided by customer
10-16 days for turnkey PCB assembly |
For details, just click to check our Process and Capabilities, which covers metal core, rigid, flex circuit and rigid-flex printed circuit board assembly.
Testing Procedures of PCB Assembly
Various testing method will be applied to the assembled PCB boards before shipping to your hand.
- Visual Inspection: general quality check.
- FAI (First Article Inspection): full quality check applied to the first PCB to pass through all processes of production.
- X-ray Inspection: Checks the soldering quality of BGAs, QFN and leadless components, like LCC.
- AOI Inspection: Checks for solder paste, 0201 components, missing components and polarity.
- SPI (Solder Paste Inspection): measures the precise volume of solder paste onto the PAD for SMT assembly.
- Functional Testing: Checks whether the PCBA assembled work as per the indications in your test procedures.
What’s the Cost of Circuit Board Assembly?
Printed circuit board assembly cost consists of PCB Cost, BOM Cost, Assembly Cost, Stencil Cost, Programming Cost, Functional Testing Cost, Freight and others may happen.
If no need programming and functional testing, that’s be simple. When request a PCB assembly quote, you should specify the service type, like full turnkey or partial turnkey. Then email us your PCB designs including Gerber files, BOM, assembly drawings and coordinate file. Of course, you can note what special actions should take during assembly or other considerations. The files and requirements will be separated and forwarded to related individual department for PCB pricing, BOM pricing, Assembly pricing and Stencil Pricing. For a turnkey PCB assembly RFQ, generally, we can provide the detailed quotation to you in 24 hours with the efficient assistance of team work.
If need programming, you also need to share us the programming method, programming kit or jig’s pogo pin connection drawing, program, and programming time estimation. If need functional testing, you also need to share us the functional testing procedures. Programming and functional testing are labor costs, which are estimated upon time consumption and tool customized fee.
